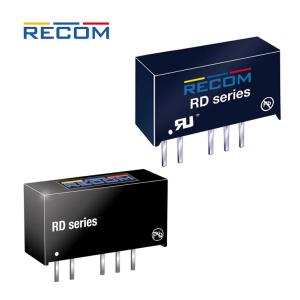

RD-0515D/HP 15V 66mA Low Power Isolated DC DC Converter

Product Categories
CHUANGXINDA ELECTRONICS-TECH CO., LIMITED
Contact Now

RD-0515D/HP 15V 66mA Low Power Isolated DC DC Converter

Brand Name : RECOM Power

Model Number : RD-0515D/HP

Certification : Lead free / RoHS Compliant

MOQ : 1 pcs

Price : USD 5.9-7.1 pcs

Payment Terms : T/T, Western Union, Paypal, Trade Assurance, Credit Card

Supply Ability : 2400 pcs

Delivery Time : 3-5 Day

Packaging Details : International Standard Packaging

Category : Isolated DC/DC Converters

Condition : Original 100%,Brand New and Original,New

Output Power : 2 W

Input Voltage, Nominal : 5 V

Output Voltage-Channel 1 : 15 V

Output Current-Channel 1 : 66 mA

Input Voltage : 4.5 V to 5.5 V

Isolation Voltage : 2 kV

Service : BOM Kitting

Lead time : In Stock,contact us

Contact Now

RD-0515D/HP RECOM DC DC Converters 15V 66mA 4.5V - 5.5V Input

Product Attribute Attribute Value
RECOM
Isolated DC/DC Converters
2 Output
2 W
5 V
4.5 V
5.5 V
15 V
66 mA
- 15 V
66 mA
2 kV
- 40 C
+ 85 C
Through Hole
SIP-7
19.65 mm
7.05 mm
10.2 mm
Isolated
RD
Input Voltage: 4.5 V to 5.5 V
Packaging: Tube
Brand: RECOM Power
Compliance: EAC; IEC; REACH; RoHS
Efficiency: 86%
Output Voltage V1, Nominal: - 15 V
Output Voltage V2, Nominal: 15 V
Product Type: Isolated DC-DC Converters
Factory Pack Quantity: 25
Subcategory: DC-DC Converter
Tradename: Econoline
Part # Aliases: 10004362
Unit Weight: 0.098767 oz

Features:
• 2W dual output converter
• Industry standard SIP7 packages
• Power sharing on outputs
• Optional continuous short circuit protection
• 1kVDC and 2kVDC basic isolation
• UL94 V-0 package material
• Efficiency up to 87%

The RD series have been specifically designed for applications where dual power rails need to
be created from a single rail supply and a low cost solution is required. With efficiencies up to 87%,
the full output power is available over the operating temperature range -40°C to +85°C and
the converters can be used in ambient temperatures of up to 100°C with derating. The wide selection
of industry standard input voltage and output voltage options plus an input to output isolation of 1kVDC
or 2kVDC makes these converters suitable for many industrial applications.




RD-0515D/HP 15V 66mA Low Power Isolated DC DC Converter


Product Tags:

15V RECOM DC DC Converter



66mA RECOM DC DC Converter



66mA low power isolated dc dc converter


China RD-0515D/HP 15V 66mA Low Power Isolated DC DC Converter factory

RD-0515D/HP 15V 66mA Low Power Isolated DC DC Converter Images
