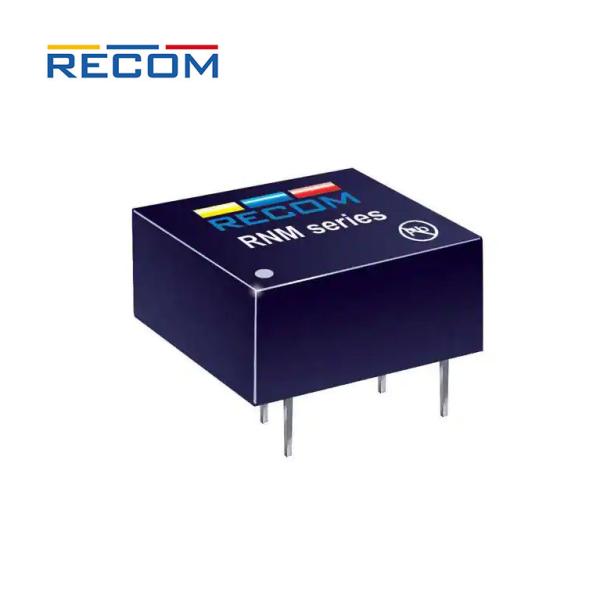

RNM-123.3S 3.3V 303mA High Efficiency Isolated DC DC Converter

Name: RNM1233S 33V 303mA High Efficiency Isolated DC DC Converter
Brand: RECOM Power
Price: 4.8 USD

Brand Name : RECOM Power

Model Number : RNM-123.3S/HP

Certification : Lead free / RoHS Compliant

MOQ : 1 pcs

Price : USD 4.8-6 pcs

Payment Terms : T/T, Western Union, Paypal, Trade Assurance, Credit Card

Supply Ability : 2400 pcs

Delivery Time : 3-5 Day

Packaging Details : International Standard Packaging

Category : Isolated DC/DC Converters

Condition : Original 100%,Brand New and Original,New

Output Power : 1 W

Input Voltage, Nominal : 12 V

Output Voltage-Channel 1 : 3.3 V

Output Current-Channel 1 : 303 mA

Input Voltage : 10.8 V to 13.2 V

Package / Case : DIP-6

Service : BOM Kitting

Lead time : In Stock,contact us

Contact Now

RNM-123.3S/HP RECOM DC DC Converters 3.3V 303mA 10.8V-13.2V Input

Product Attribute	Attribute Value
Manufacturer:	RECOM
Product Category:	Isolated DC/DC Converters
Number of Outputs:	1 Output
Output Power:	1 W
Input Voltage, Nominal:	12 V
Input Voltage, Min:	10.8 V
Input Voltage, Max:	13.2 V
Output Voltage-Channel 1:	3.3 V
Output Current-Channel 1:	303 mA
Isolation Voltage:	2 kV
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	Through Hole
Package / Case:	DIP-6
Length:	8.38 mm
Width:	8.38 mm
Height:	6.86 mm
Product:	Isolated
Series:	RNM
Input Voltage:	10.8 V to 13.2 V
Packaging:	Tube
Brand:	RECOM Power
Compliance:	CAN/CSA; EAC; IEC; REACH; RoHS; UL
Efficiency:	75%
Output Voltage V1, Nominal:	3.3 V
Product Type:	Isolated DC-DC Converters
Factory Pack Quantity:	60
Subcategory:	DC-DC Converter
Tradename:	Econoline
Part # Aliases:	10901695
Unit Weight:	0.038801 oz

Features:

• Ultra-compact size - only 8.3 x 8.3 x 6.8mm
• 1kVDC/1s or 2KVDC/1s basic isolation
• Optional continuous short circuit protected
• Fully encapsulated
• UL and EN certified, CB report
• Efficiency to 84%

The RB series DC/DC converter has been designed for isolating or converting DC power rails in
general purpose applications. Although low cost, it does not compromise on features and offers
1KVDC/1s or 2kVDC/1s isolation, a –40°C to +85°C operating temperature range and optional
continuous short circuit protection.
